Flat Bezel Panel Mount Touch Screen PC 8 Inch Industrial AIO Window J1900/I3/I5

Name: Flat Bezel Panel Mount Touch Screen PC 8 Inch Industrial AIO Window J1900I3I5
Brand: ITD/OEM
Price: 1 USD

Flat Bezel Panel Mount Touch Screen PC 8 Inch Industrial AIO Window J1900/I3/I5 Manufactures

Brand Name : ITD/OEM

Model Number : ITD08PPCT***

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 10-15 work days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

IP Rating : IP65 Front Panel

Touch Technology : Projected Capacitive Touch with 10 touch points/Resistive touch

Resolution : 800X600

Brightness : 250cd/m2

Port : USB/VGA/HDMI/Serial

Operating Temperature : -10~60℃ (-20~70℃ Optional)

Storage Temperature : 20~70℃

Mounting Method : VESA, embedded/panel mounting with clamps, desktop stand

Price : TBA

Contact Now

Flat Bezel Panel Mount Panel PC 8 inch industrial AIO Window J1900/i3/i5

The new Compact line series of PCAP touch panel PCs from ITD combines the advantages of compact and rugged aluminum die-cast housing with an open platform HMI powered by the Intel Celeron processor J1900 or Intel Core processor i3/i5/i7 as the processor engine. Specifically designed for industrial machinery, intelligent, web-based and smart HMI applications, these Celeron and Core processors are energy efficient and offers other benefits as well.

Specifications:

Model	ITD08PPCT5XJ1	ITD101PPCT5XJ1	ITD10PPCT5XJ1	ITD12PPCT5XJ1
Size	8”(4:3)	10.1”(16:9)	10.4” (4:3)	12.1” (4:3)
Active Area	162.0(W) x 121.5(H)	227.0(W) x 131.0(H)	211.2(W) x 158.4(H)	246.0(H) x 184.5(V)
Contrast Ratio	500:1	500:1	500:1	500:1
Resolution	800 x 600	1366 x 768	800 x 600 or 1024 x 768	800 x 600 or 1024 x 768
Brightness	250nits	300nits	300nits	300nits
Viewing Angles	70/70/50/70	80/80/80/80	70/70/60/70	70/70/60/60
Backlight	LED	LED	LED	LED

System	CPU	Intel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor
	BIOS	Award BIOS 4/8Mbit SPI Flash ROM
	Chipset	Intel® Bay Trail SOC CPU Integrated
	Memory	1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
	Graphic Chipset	CPU integrated graphics HD and support 1080p
	Storage	32GB SSD or 320GB HDD
	LAN	1 x 10/100/1000Mbps Ethernet
I/O	Serial Ports	1xCOM(10.1”,10.4”); 2xCOM(Default to RS232, RS422/485 optional)
	USB Ports	2XUSB 2.0(10.1”,10.4”); 2XUSB2.0, 2XUSB3.0
	VGA Port	1 x VGA
	HDMI Port	1 x HDMI Port
	Power Port	1 x 12V DC Jack input(ATX is optional)
	Audio Card	Realtek ALG662 Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN
	WIFI	Built-in, 802.11a/b/g/h (optional)
Touch Screen	Type	Projected Capacitive Touch Screen with 10 independent touch points (Default to USB Port, RS232 Port Optional)
	Response Time	≤5ms
	Transparency	≥85%
	Lifetime	≥50,000,000 times/click
	OS Support	Windows CE/XP/7/8/10, Linux, Mac, Android
Operating Temperature	-10~60℃ (-20~70℃ Optional)
Storage Temperature	-20~70℃
Operation Humidity	10%~90%(No Condensation)
Mounting Method	VESA, embedded/panel mounting with clamps, desktop stand
Order Information	Flat Bezel PCAP Panel Mounted Panel PC/ITD**PPCT5XJ1
	Flat Bezel Resistive Touch Panel Mounted Panel PC/ITD**PPCT1XJ1
	Flat Bezel Tempered Glass Panel Mounted Panel PC/ITD**PPCG1XJ1

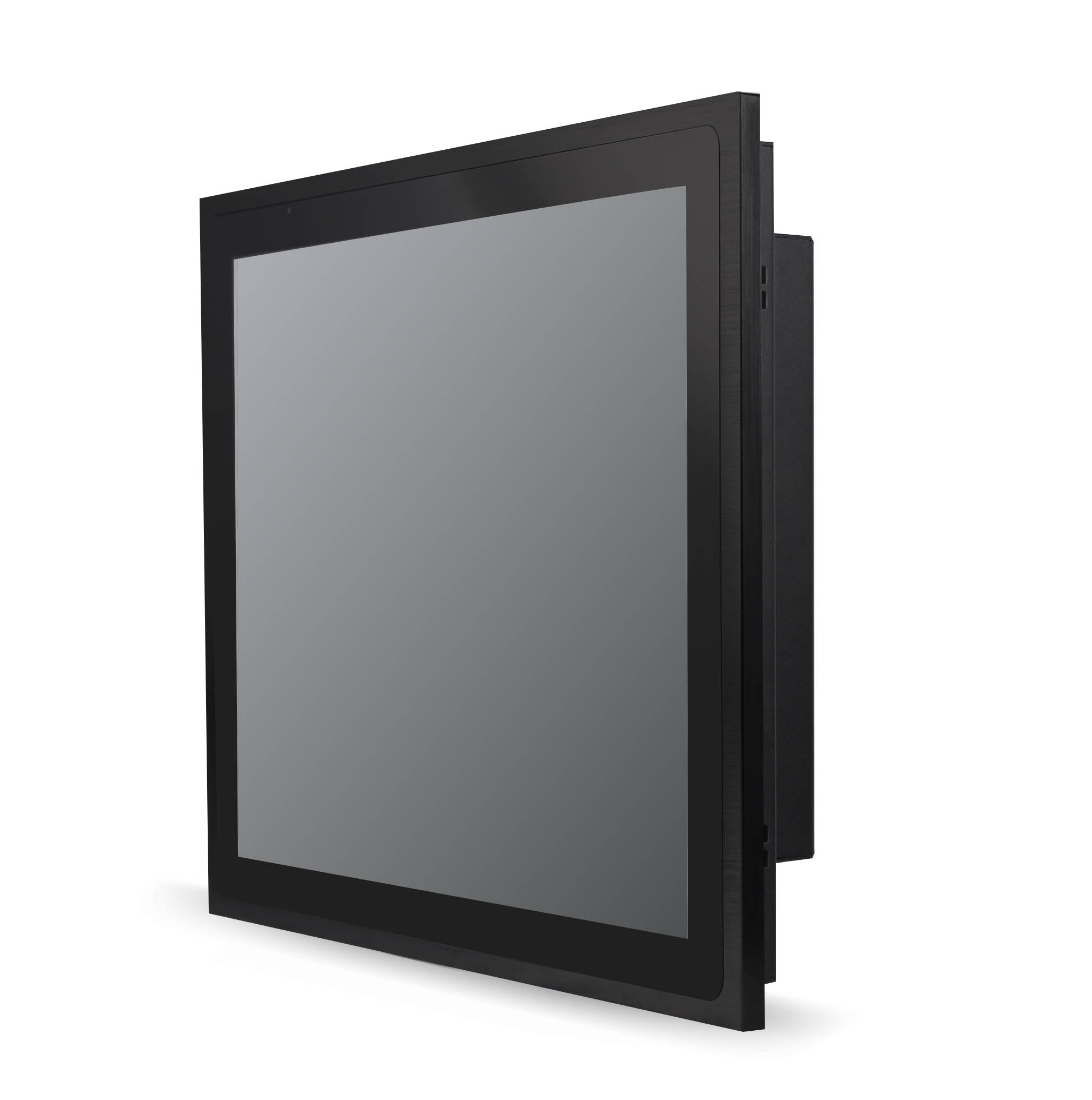

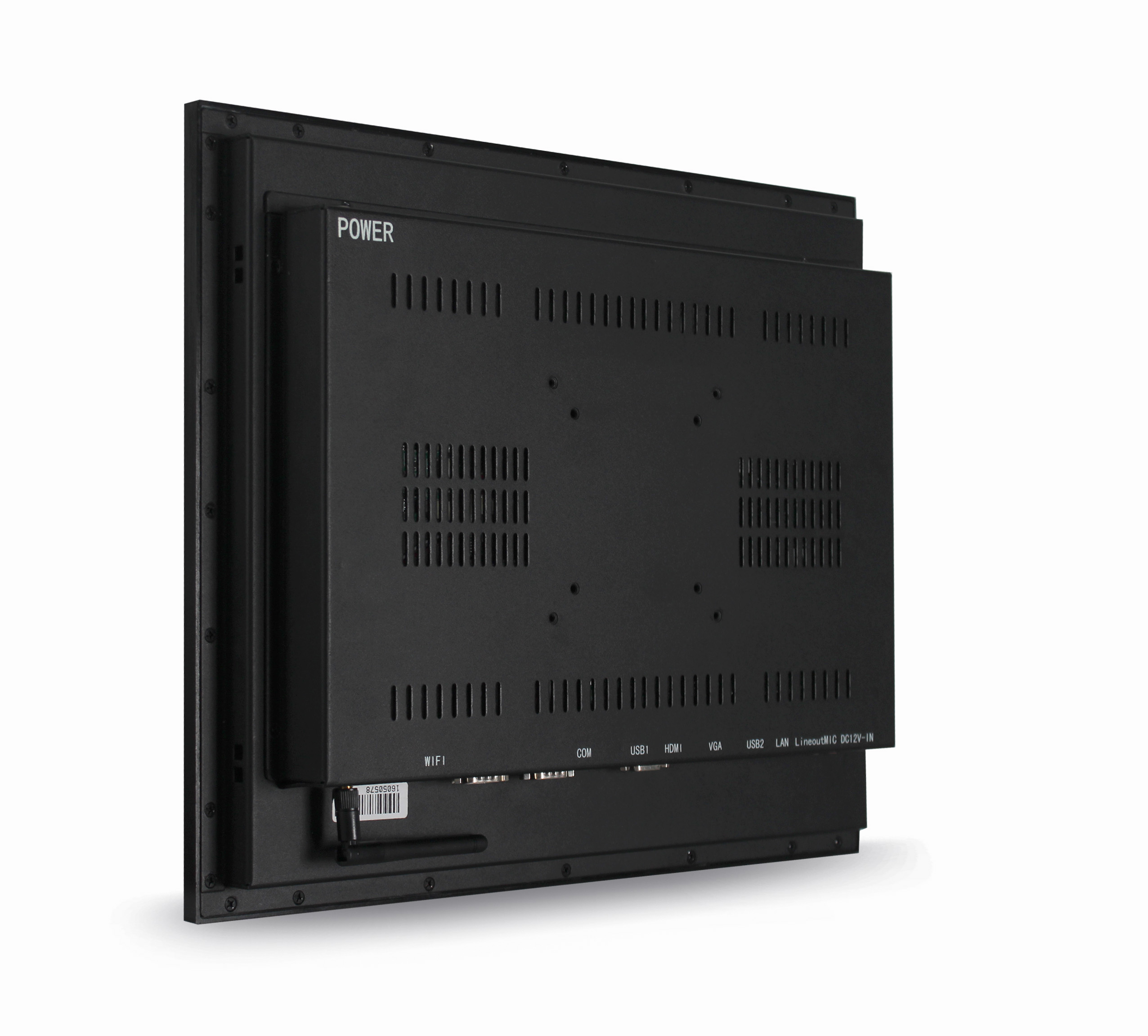

Product Display:

Flat Bezel Panel Mount Touch Screen PC 8 Inch Industrial AIO Window J1900/I3/I5

Applications:

Flat Bezel Panel Mount Touch Screen PC 8 Inch Industrial AIO Window J1900/I3/I5
