1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD10PPCTxB-xxxx

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : 800x600 or 1024x768

Brightness : 350 ,1000nits optional

Processor : Intel J1900, Intel i3/i5/i7

touch panel : capacitive/resistive

Mounting method : panel mounted,VESA

I/O : USB, COM, HDMI, Audio, LAN, GPIO

Operating Temperature : -20~60℃

Humidity : 10%~90% non condensing

Material : Aluminum Housing, HeatSink

Warranty : 2 years

MTBF : 50000hours

Contact Now

10 panel pc industrial hmi touch panel with GPIO Windows CE

Features

  • Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
  • Onboard DDR3 4GB Memory / Optional SODIMM SKU
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation, Super Slim design
  • IP65 Front Panel
  • Wide DC Support 9 ~ 36V
  • GPIO Port
  • All Aluminum Housing with Heatsink
  • Edge to edge design, flat surface, easy-to-clean
  • Embedded Mounting and VESA Mounting
  • Anti-Shock and Anti Vibration

Applications

  • Automation
  • Transportation&Vehicle
  • Oil&Gas
  • Medical
  • IoT&AI
  • HMI
Panel Cell Type/Glass Surface TFT

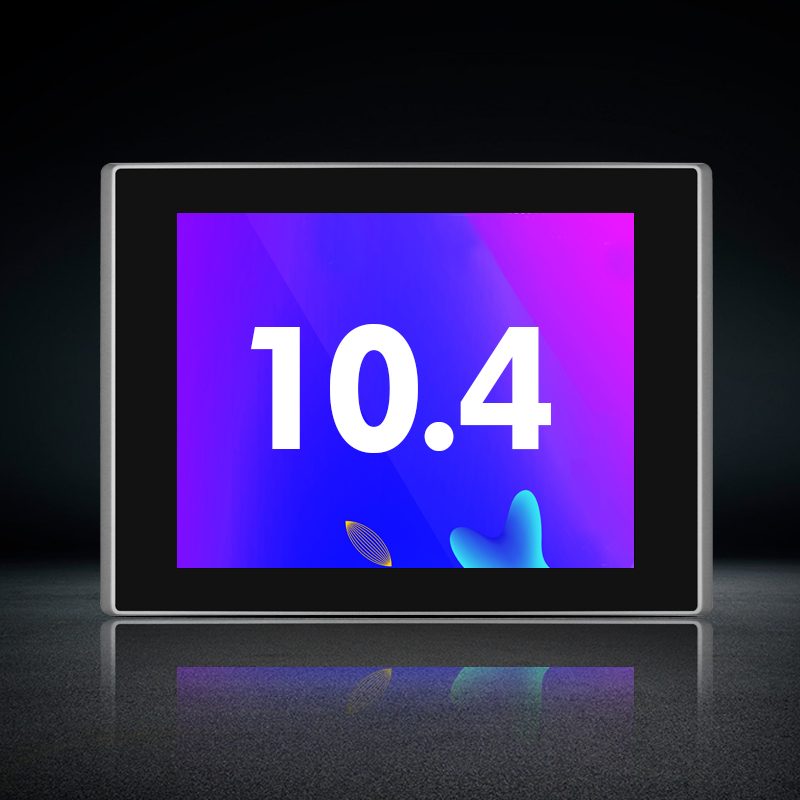

Size/ Aspect Ratio 10.4”/4:3
Active Area/ Pixel Pitch 211.2(W) x 158.4(H)mm/0.264 × 0.264mm
Native Resolution/ Colors 800 x 600 (1024 x 768 optional)/ 262K/16.2M
Brightness/ Contrast 1000cd/㎡ (1500cd/㎡ optional)/ 700:1
Response Time/ Viewing Angle(Typical) 30ms/70/70/60/70
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional

 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB

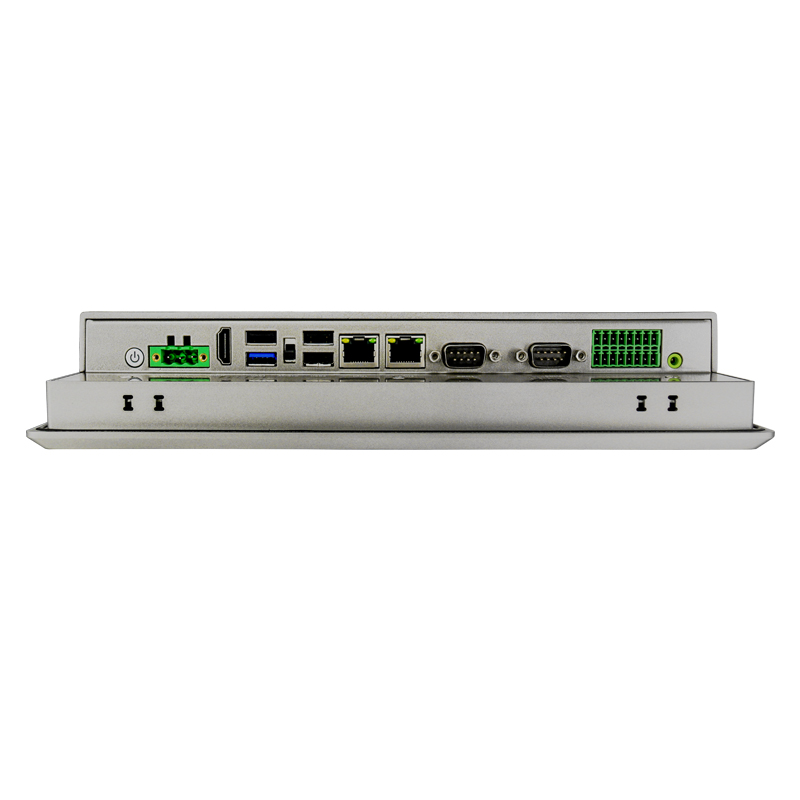

3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO

3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 20~50W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%

1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
