12.1" PCAP Flat Bezel Touch Panel PC industrial panel mounted embedded touch panel PC smart card reader RFID NFC
FEATURES of touch panel PC
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Web camera, RFID and thermal printer integrated
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•DC 24V, DC9-36V, AC100-240V
•High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc
Specs:
SPECIFICATION of panel mounted embedded touch panel PC
| Panel | Cell Type/Glass Surface | TFT |
| Size | 12.1” |
| Aspect Ratio | 4:3 |
| Active Area | 246.0(W) x 184.5(H)mm |
| Pixel Pitch | 0.3075 × 0.3075mm |
| Native Resolution | 800 x 600 (1024 x 768 optional) |
| Colors | 262K/16.2M |
| Brightness | 300cd/㎡ |
| Contrast | 700:1 |
| Response Time | 30ms |
| Viewing Angle(Typical) | 80/80/60/80 |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Celeron J1900 2.0GHz Processor |
| BIOS | AMI |
| Chipset | Intel Bay Trail SoC |
| Memory | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB |
| Graphic Chipset | Intel HD Graphics (By CPU) |
| Storage | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| LAN | 1 x 10/100/1000Mbps Ethernet |
| Input / Output | Serial Ports | 2 x COM |
| USB Ports | 4 X USB |
| VGA Port | 1 x VGA Output |
| HDMI Port | 1x HDMI Output |
| Audio Card | with Realtek ALC662 Line-Out/MIC IN |
| Power | Power Input | DC 12V |
| Operation/Power Saving | 35W |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 10%~90% |
| Order Information | 12.1” Panel PC with PCAP Touch+RFID&Finger Printer /ITD12PPCT5XJ1-RFID-FP |
| 12.1” Panel PC with Resistive Touch+RFID&Finger Printer /ITD12PPCT1XJ1-RFID-FP |
| 12.1” Panel PC with Tempered Glass+RFID&Finger Printer /ITD12PPCG1XJ1-RFID-FP |

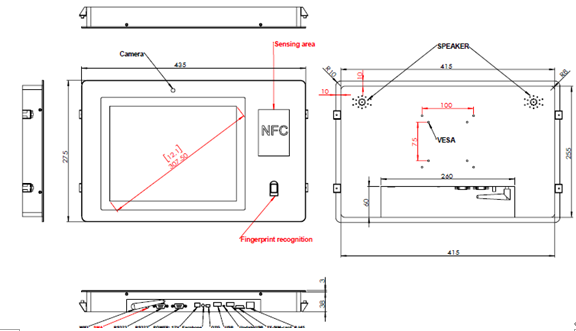

Drawing:

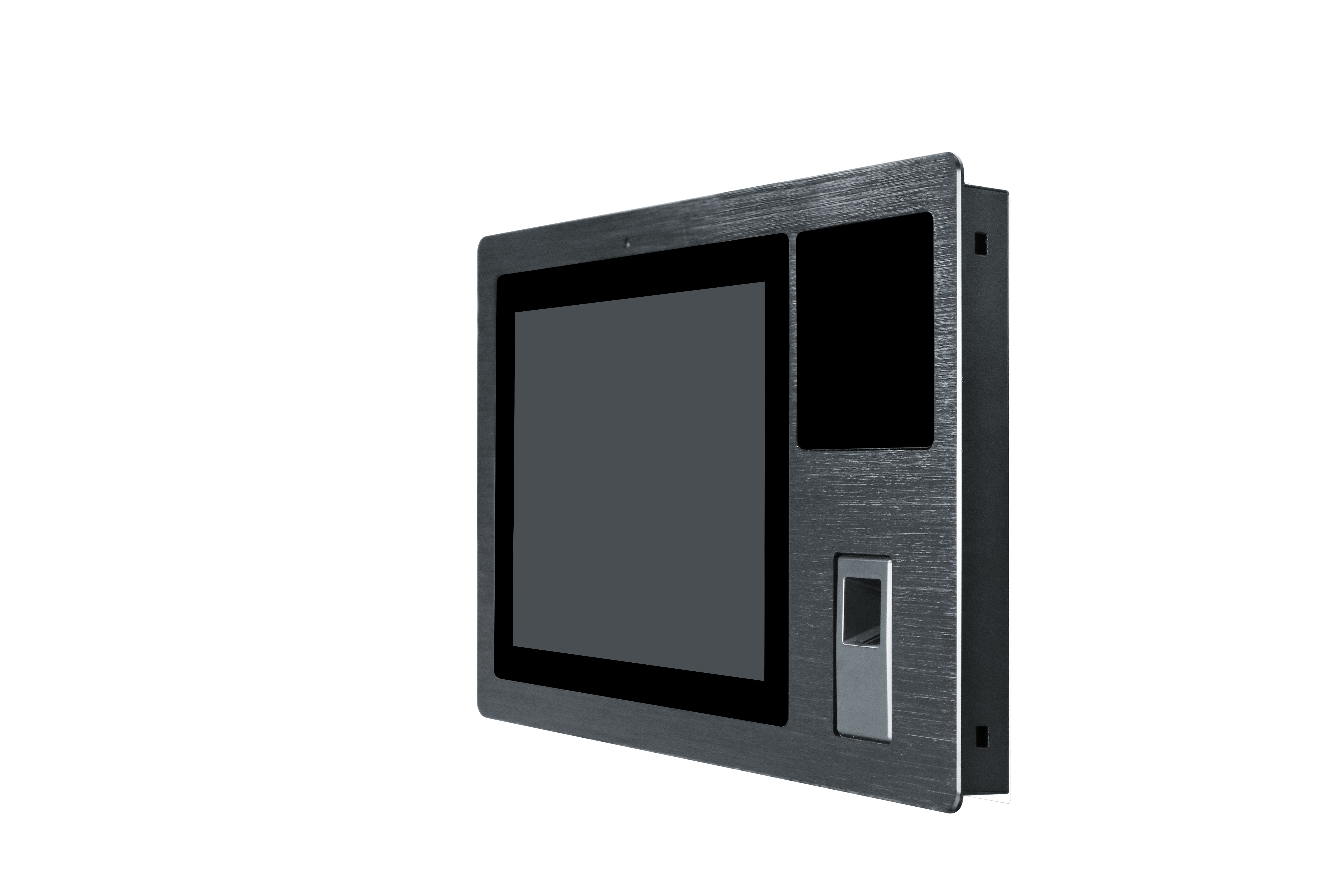

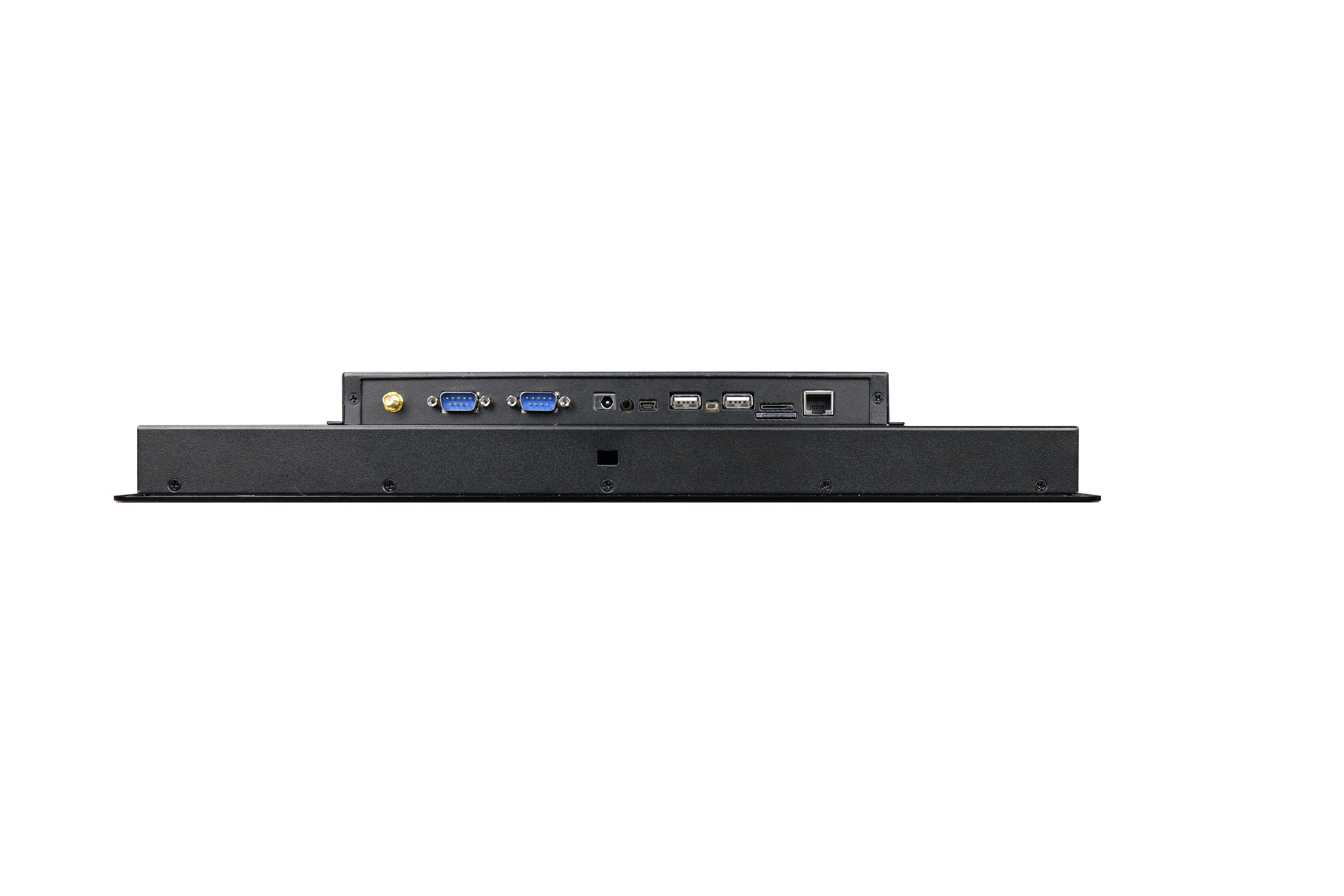

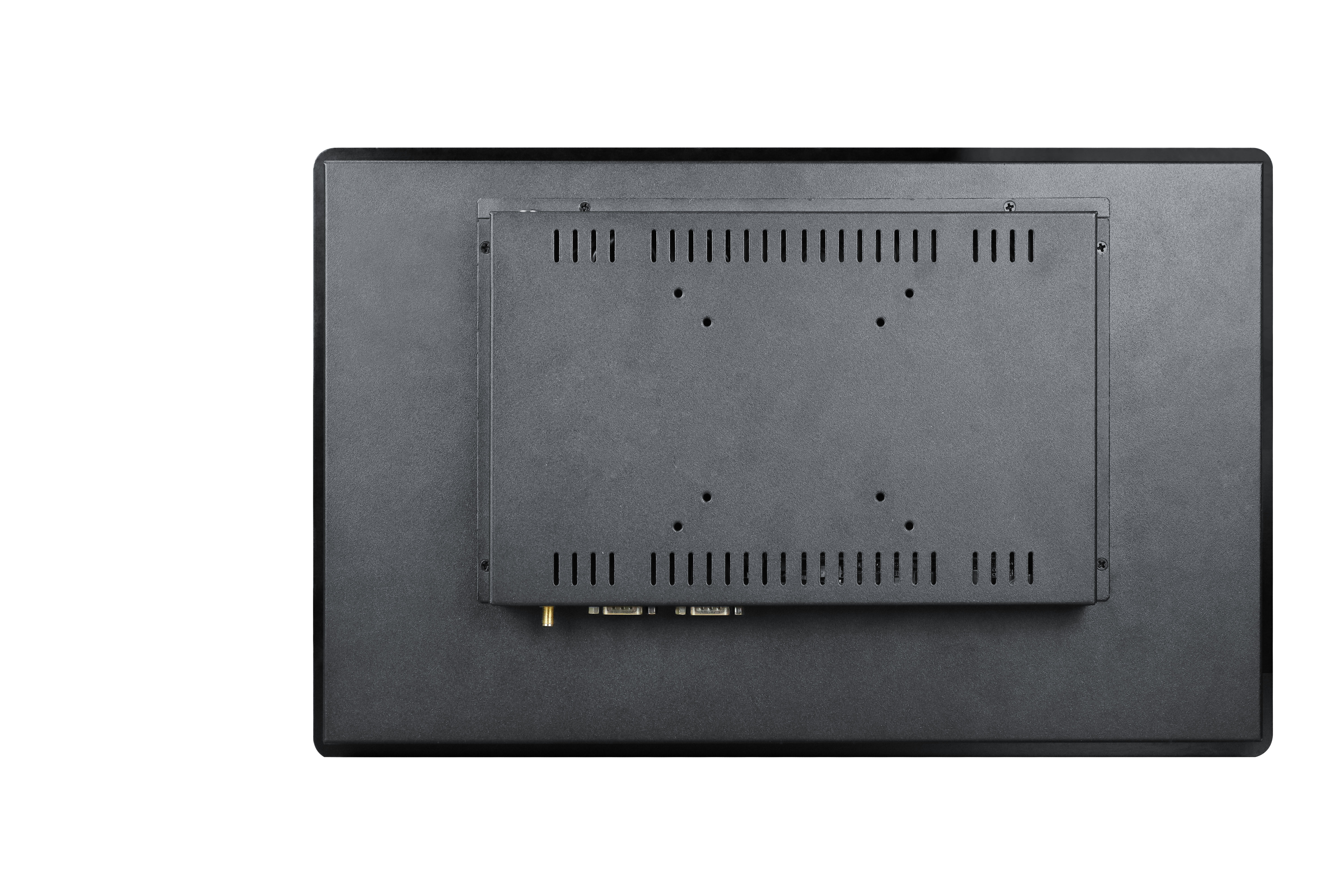

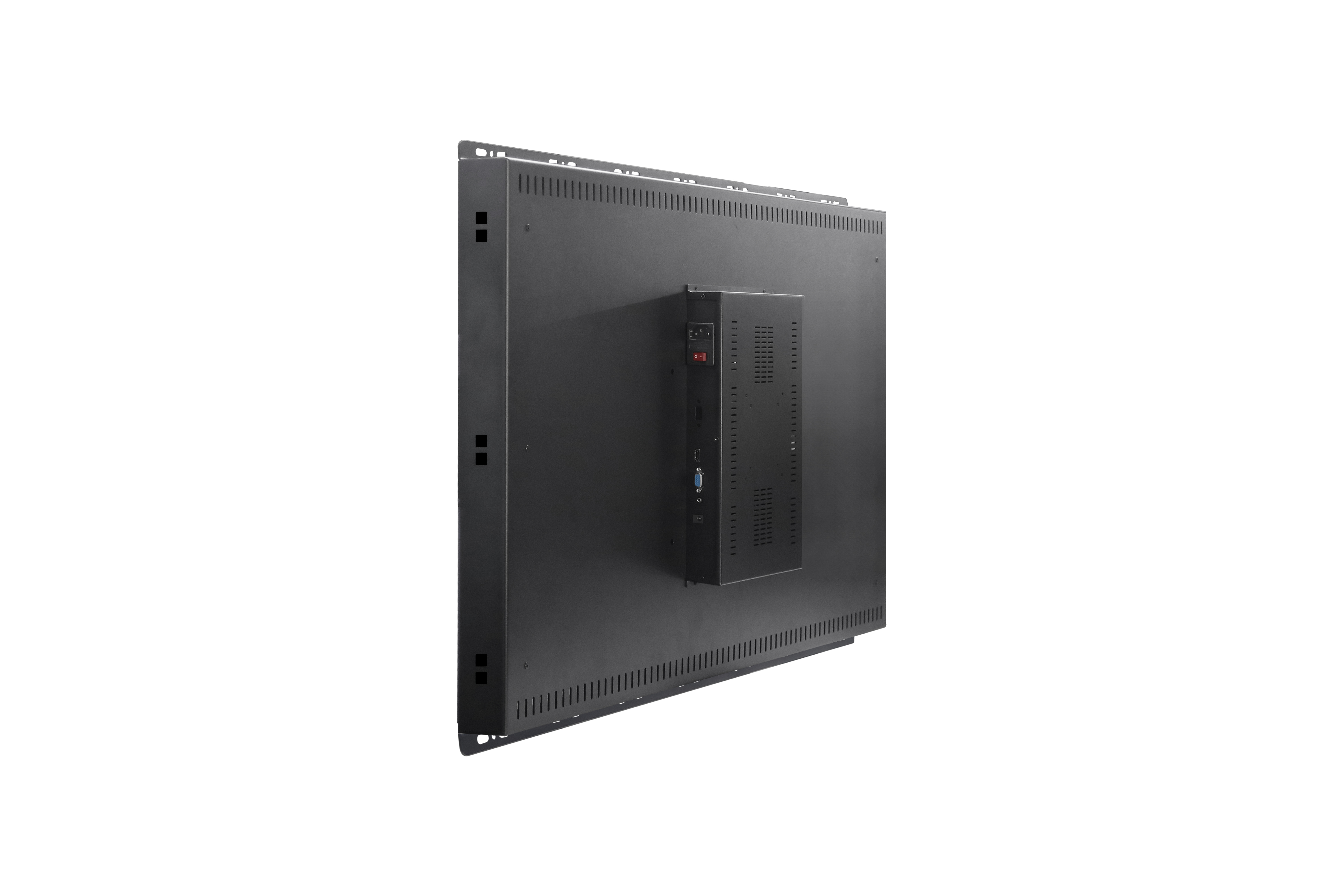

Image of embedded touch panel PC smart card reader RFID NFC:
